Iso-Mix External Drive (IMXD)

The Alfa Laval Iso-Mix External Drive (IMXD) is a revolutionary system that enables automation and scale-up of dry hopping techniques for larger beer volumes (from 100 to over 5000 hl). The simple and compact IMXD works with any hop introduction system. It counters excessive extraction of the aroma compounds, minimizes products loss and allows efficient CIP. The system can also optimize fermentation, maturation and crash-cooling processes.

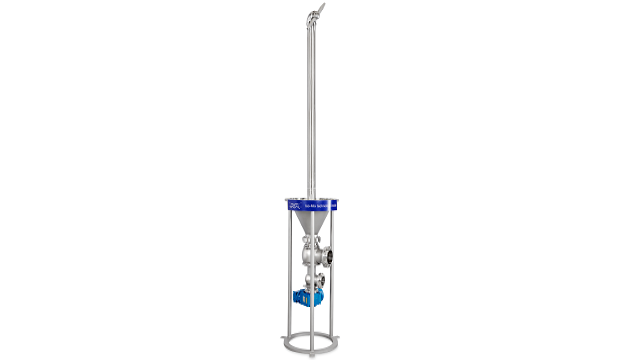

Alfa Laval Iso-Mix External Drive (IMXD)

Efficient dry hopping without excessive oxygen pick-up

  • Long residence times mean very fast dispersion and extraction of hop aromas
  • Low beer loss during dry hopping as hops removed by centrifugation
  • Reduced potential for plugging of filters and process lines as homogenization of the hops prevents settling and blockages
  • Cost savings through efficient hop utilization thanks to effective dispersion and extraction of hops in entire beer volume
  • Prevents hop carry-over from centrifuge
IMXD enables a beer dry hopping process that reduces residence time, product loss and process issues. Additional potential benefits of the IMXD dry hopping equipment include the minimization or elimination of process issues typically associated with dry hopping, such as blockages of lines, heat exchangers and other equipment that can lead to costly shut-downs.
.

How it works

The Iso-Mix External Drive system (IMXD) is a special version of our highly successful Iso-Mix bottom entry dry hopping system that reduces hop retention time from days to hours. It is particularly suitable for use in the process of dry hopping beer in medium to large fermenter tanks.

The IMXD mixer is rotated by an external motor connected to an internal shaft. As such, there is no contact between the circulating fluid and the mixer gears, which allows the system to handle high concentrations of solid matter, such as hop particles, in the circulating fluid.

The IMXD mixer is located relatively low in the tank, typically within the cone section. This allows the mixer to be operated while the tank is being filled and emptied. For dry hopping, this configuration enables the mixer to maintain the hops in homogeneous suspension during transfer from the tank to downstream centrifugation. This helps maintain a constant load to the centrifuge resulting in optimal separation efficiency and performance.

Because of its high tolerance to circulating particulates, including whole pellets, the IMXD dry hopping system provides flexibility in the choice of hops introduction to the fermenter. For example, hop pellets can be pre-slurried in a small tank at high solids concentrations and dosed into the circulation loop using a positive displacement pump, or whole hop pellets can be gas-blown directly into the fermenter with carbon dioxide.

The IMXD dry hopping system can also be used to optimize the fermentation and cooling processes, as it maintains the yeast in suspension during the fermentation process. This provides optimal contact between yeast and fermentable sugars, and prevents yeast settling in the cone during fermentation. The typical benefits are reduced process time, less variation in process time and better and more consistent extract utilization. (The degree of improvement will depend on the yeast strains and the process conditions employed for each individual beer or brand formulation.)

The Iso-Mix/IMXD system also helps maintain (or even improve) yeast health and viability. Any additional shear stress is more than compensated for by the reduction in yeast stress as the yeast remains in suspension during the entire fermentation. This avoids yeast stress associated with settling in the cone, which otherwise can starve the yeast of nutrients. The reduction in yeast stress can be seen in the decreased production of SO2 and acetaldehyde (both of which are known by-products associated with yeast stress).

.

Learn more about the IMXD dry hopping techniques

You can read more about the efficiency, practicality and technical details of the Alfa Lava Iso-Mix External Drive dry hopping system by downloading the leaflet.

slavutich-brewery-case 640x360
.

เราจะช่วยคุณได้อย่างไร

We don’t offer a one-size-fits-all approach to the dry hopping process, so before we make any recommendations we want to hear your side of the story and speak to your personally about your aims, ambitions and requirements in terms of dry hopping specifically and your brewery in general. Contact us here:

.
commercial brewing tank farm 1920x480

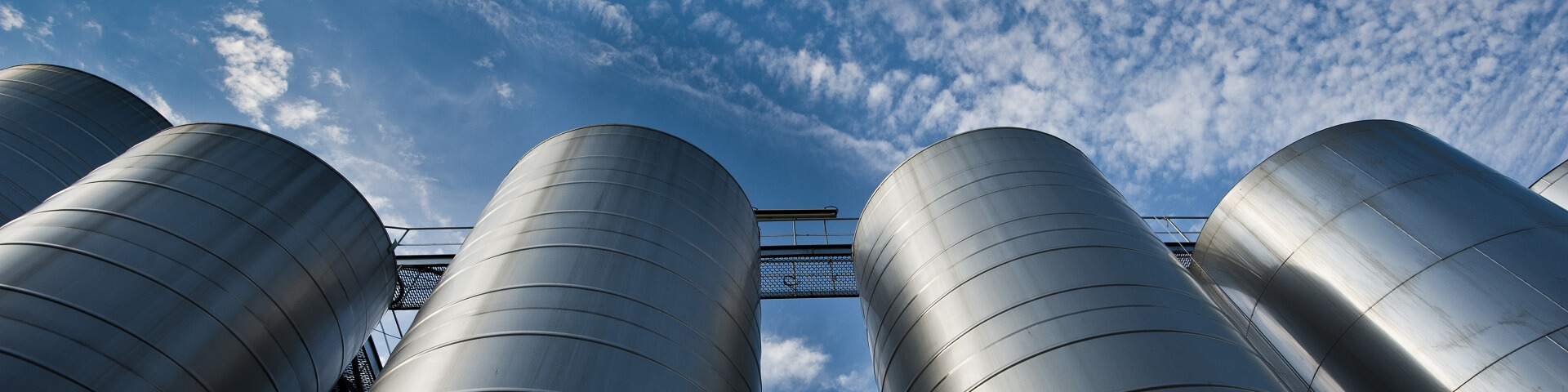

Commercial brewing tank farm
