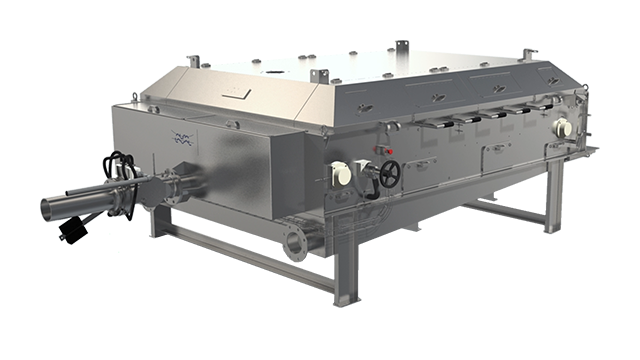

AS-H Belt Thickener
Using gravity to thicken dilute sludge and slurries, the Alfa Laval AS-H belt thickener is suitable for all municipal or industrial flocculated sludges – particularly those from biological and activated sludge processes. Low energy and polymer consumption and trouble-free operation give important reductions in both cost and hassle for wastewater management.
Numerous advantages for flocculation sludge thickening and dewatering
- Reduce the volume of sludge, thereby reducing waste disposal cost
- Low energy use and polymer consumption
- Lower labour cost and cost of change, thanks to minimal need for operator attention and maintenance
- Totally-enclosed, low-odour unit with easy access for better safety and work environment
- Robust design avoids fatigue and wearing
Designed for high throughput rates and high product solids content, the Alfa Laval AS-H belt thickener is considered the industry standard for removal of liquid from a solid-liquid suspension/sludge. With a simple design the sludge thickener has a small footprint and is suitable for both indoor and outdoor installation in your effluent treatment plant.
How does the gravity belt thickener work?
The sludge thickener works on the principle of separating liquid from solids by gravity drainage through a slowly rolling belt cloth. It uses a sludge polymer mixing valve with an adjustable lever arm to ensure sufficient turbulent sludge/polymer mixing.
After this, the ramp feeding section delivers a consistent load across the filtration area to maximize filtration properties.
A sludge retention tank, also known as the ﬂocculation chamber, is filled from the bottom and then rises up over a weir to ensure even distribution onto the belt. Sludge ploughs force the sludge into lanes, which allows free water to run through the belt cloth where sludge is not present, thus enhancing the pre-dewatering process. Sludge ploughs can be lifted to allow for removal of rags etc.
The result is excellent thickening in a totally-enclosed, low-odour unit.
Find out more
View technical details, model sizes, flow capacities and more.
10 top tips
To keep your Alfa Laval AS-H Belt Thickener in tip top condition.
Solutions for the Circular Economy
More and more wastewater treatment plants are discovering the benefits of a circular, holistic approach to wastewater treatment. Cost savings, reduced environmental impact and new income streams from recovered resources are but a few. Every wastewater treatment plant is unique and has its own set of challenges and opportunities. With our expertise in processing and our broad range of products, we can support your shift to a circular resource flow. Regardless of whether you are a contractor, designer or plant operator we can help you find the optimum solution for your specific project.
Services to extend your equipment performance
We support you with all types of services and training required for high performance and maximal ROI throughout the lifespan of your investment. With Alfa Laval as your service partner, you ensure reliable uptime and high efficiency while keeping total cost of ownership to a minimum.
