How a disc stack centrifuge works

As you might know, there are various types of separation technologies available. Separation technology involving a disc stack separator (which can also be referred to as a centrifuge) is used for centrifugation in which various phases of solids and liquids are isolated from one another based on the difference in densities.

Similar to a settling tank, disc stack separators use the force of gravity to separate liquid with a specific density from other liquids and solids. Unlike a settling tank which uses retention time as the main parameter for liquids of different densities to divide into layers and solids to precipitate to the tank, centrifugal separators use mechanical force to separate liquids and solids with different densities from each other.

Using the force of gravity

In essence, a disc stack separator is a settling tank whose base is wrapped around the center line of the bowl. Rapid rotation of separator bowl means that the effect of gravity is replaced by a controllable centrifugal force, or gravitational force known as G-force, that can have an effect up to 10,000 times greater than the force of gravity.

G-force is then used to separate liquids from other liquids and solids efficiently with great accuracy and speed and in a manner that is easy to control. A disc stack within the bowl contributes to higher separation efficiency by substantially increasing the separation area in the separator bowl. This means that the separation task using a centrifugal separator not only takes place significantly faster, but results in higher quality and higher yield.

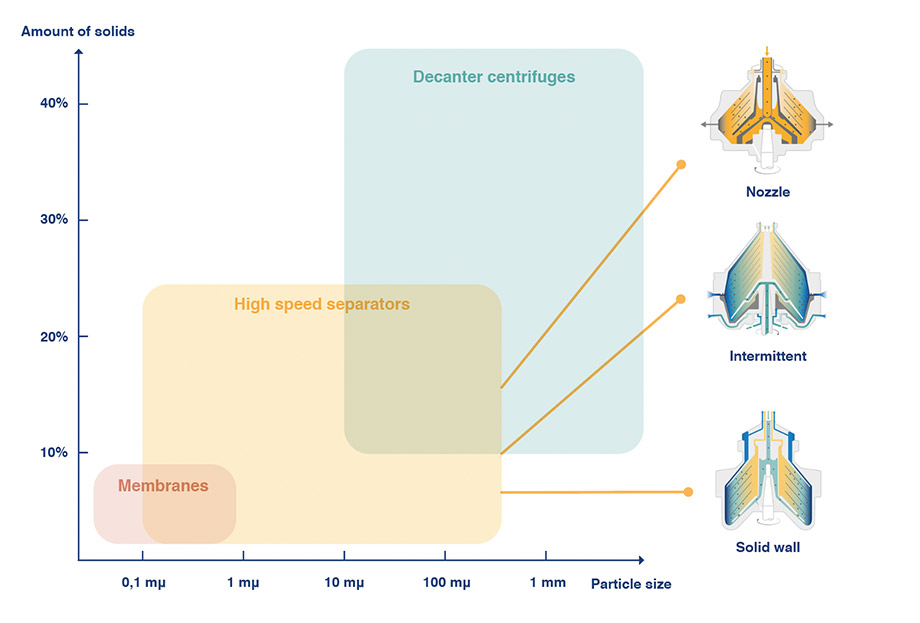

The solids that concentrate at the outer edge of the bowl are removed—either continuously, intermittently or manually, depending on the volume of solids involved in the specific application.

To increase separation efficiency, conical plates are stacked, one on top of the other, inside the bowl - to provide more separation surface area. These stacks, referred to as a bowl disc stacks, dramatically speed up the precipitation of the solids from the liquid.

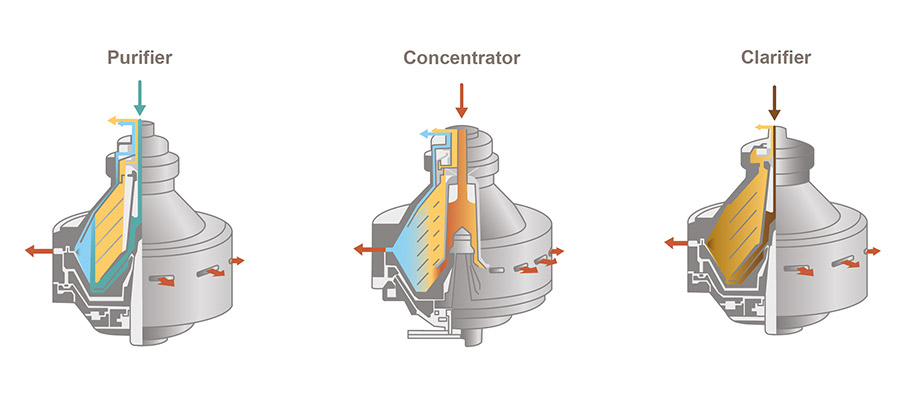

disc stack centrifuge illustration


ผลิตภัณฑ์ทำงานอย่างไร

เทคโนโลยีการแยกส่วนมีความสำคัญต่ออุตสาหกรรมหลากหลายประเภท ตั้งแต่อาหาร เครื่องดื่ม และยาไปจนถึงการเดินเรือและพลังงานไปจนถึงการบำบัดน้ำและของเสีย เทคโนโลยีต่างๆ ใช้ในการแยกของเหลวออกจากของเหลวและของแข็งออกจากของเหลวโดยมีจุดประสงค์เพื่อผลิตสารที่สะอาดขึ้น สามารถนำไปใช้กับผลิตภัณฑ์ และปริมาณขยะที่น้อยลง
