P3

Robust design with large capacity to dewater difficult mine tailings

Alfa Laval P3 decanter centrifuges help eliminate many of the problems associated with tailings dam operations and filtration technologies. They are a proven and effective dewatering solution for slimes, clays and silts and other fine tailings. The special deep-pond design, the unique conveyor and the optimized cone angle enable you to treat volumes. The resultant spadeable cake can be disposed of by co-disposal or dry stacking while the separated water can be recycled for reuse.

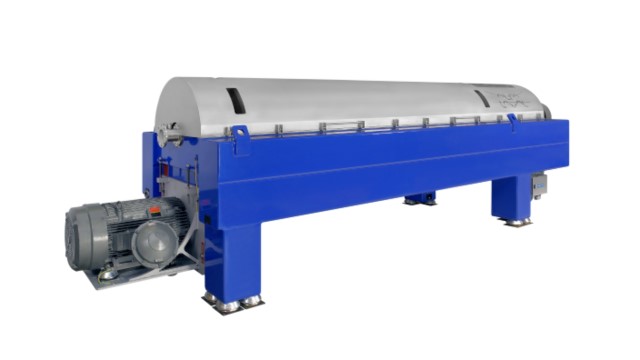

P3 640x360

Built to last with highest throughput on the market

  • Able to dewater ultrafine material < 10 micron in continuous operation
  • Robust design (fully wear protected) for high reliability
  • No filter cloth, limited quantity of wash-water at shutdown
  • Low capital and installation cost
  • Can be trialled on a pilot for proof of concept and then scaled up

Built to last Alfa Laval P3 decanter centrifuges are constructed with carefully selected components such as Duplex stainless steel (SS316 and SAF2205) or Super Duplex SAF2507 on request. Heavy-duty bearings and a stiff box beam frame ensure a design fit for purpose, and all exposed interior parts are protected by replaceable tungsten carbide tiles. The smooth acceleration of solids in the feed and outlet zones helps minimize wear and results in an efficient separation process.

How it works

Alfa Laval P3 decanter centrifuges are specifically designed to separate mining and mineral slurries, tailings and sludge into a solid phase and liquid phases.

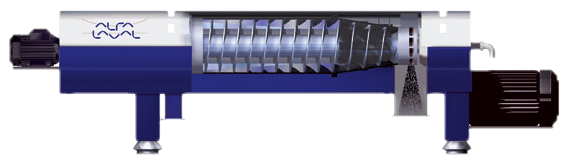

Separation takes place in a horizontal cylindrical bowl equipped with a scroll conveyor. The product is led into the bowl through a stationary inlet tube and is then smoothly accelerated in a full-flow feed zone design. Centrifugal forces of up to 3,500 G make the solids accumulate on the inner surface of the bowl.

The conveyor rotates in the same direction as the bowl, but at a different speed. This moves the solids towards the conical end of the bowl. The solids leave the bowl through the solids discharge openings into the casing.

Separation takes place throughout the length of the cylindrical part of the bowl, and the clarified liquid leaves the bowl by flowing over adjustable plate dams into the casing.

Learn more

Read more about the efficiency, practicality and technical details of the Alfa Laval P3 solid-bowl decanter centrifuge by downloading the leaflet.

Ask the experts!

If you are looking for ways to increase the efficiency of your tailings management and make a meaningful contribution to the global sustainable development goals, contact Alfa Laval today to learn more about our proven and cost efficient solutions.
