Unique innovation for improving sustainability

Alfa Laval is the only supplier of bloc-type heat exchangers with more than eight decades of experience developing heat transfer technology. All of that expertise has gone into making Compabloc the unrivalled champion of heat exchange – with unique innovations that set it apart from the rest.

Alfa Laval Compabloc welded plate heat exchanger
.

C-Weld™

Alfa Laval Compabloc with C-weld enables superior cleaning and extended performance
Superior cleaning and extended performance

Alfa Laval manufactures the Compabloc plate pack using advanced laser welding with a butt-to-butt weld joint technique known as C-Weld. This eliminates crevices or “dead zones” common in other bloc-type heat exchangers, where fouling can build up, leading to corrosion and failure.

The use of laser welding and the C-Weld joint design further ensure higher reliability than conventional weld techniques, such as lap weld joints or TIG welding, which are far more susceptible to mechanical stress and failure. The end result is increased reliability and serviceability for maximum uptime.

See how C-weld works

.

SmartClean™

Alfa Laval Compabloc with SmartClean for fast and efficient flushing of fouling material
Fast and efficient flushing of fouling material

Alfa Laval’s C-Weld manufacturing method creates open channels around all the edges of plates in the Compabloc plate pack. During mechanical or chemical cleaning, as well as in the course of regular operation, any fouling that occurs will move along the heat transfer surface and flow freely out of these channels at the plate boundary. This SmartClean design makes it possible to fully clean every plate in the unit, returning the Compabloc to like-new performance after maintenance.

The SmartClean channels, impossible on bloc-type heat exchangers manufactured with edge welding, makes regular cleaning of the Compabloc both simple and quick.

See how SmartClean works

.

XCore™

Alfa Laval Compabloc with Xore - advanced design for higher pressures
Advanced design for higher pressures

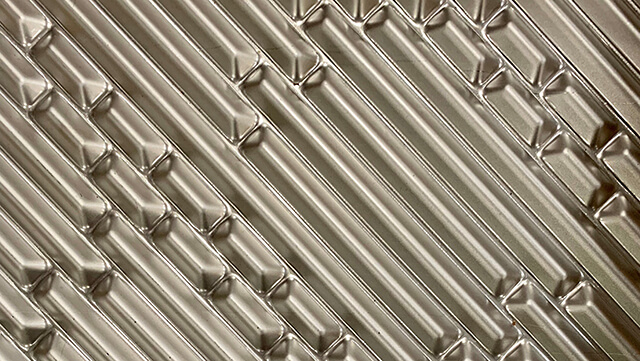

Compabloc plates feature a one-of-a-kind pattern with “half-pyramids” equally distributed across the plate in an X-shaped pattern. This adds rigidity that increases mechanical strength for superior resistance to elongation forces common in high-pressure applications. With this cleanable XCore pattern, certain Compabloc models can handle pressures up to 42 barg without compromising thermal performance.

XCore pattern

Alfa Laval Compabloc XCore

.

ALOnsite™

ALOnsite - Qualified support at your facility
Qualified support at your facility

No matter where you are located, you are never far from a local team of trained Alfa Laval service engineers. To make sure you get the most from your Compabloc unit, we can always dispatch support to your facility – even at short notice.

The Compabloc design, with easy-to-open side panels, allows us to perform most services onsite without having to move the unit. Our experts can assist with everything from routine cleaning and inspections to more demanding issues. Many of our service centres are staffed by qualified welders who can perform critical repairs on location.

บริการนอกสถานที่

6 benefits of heat exchanger improvements

Why choose the champion of heat exchange? Discover more about the plate heat exchanger benefits of Alfa Laval Compabloc.
