Alfa Laval AlfaQ™ heat exchangers are used for HVAC applications such as district cooling substations, ice-storage systems, data centers, and free cooling systems. The range is certified according to the AHRI Liquid to Liquid Heat Exchangers (LLHE) Certification Program which ensures thermal performance according to manufacturers’ published specifications. AHRI certification is the only global, third-party performance certification for plate heat exchangers.

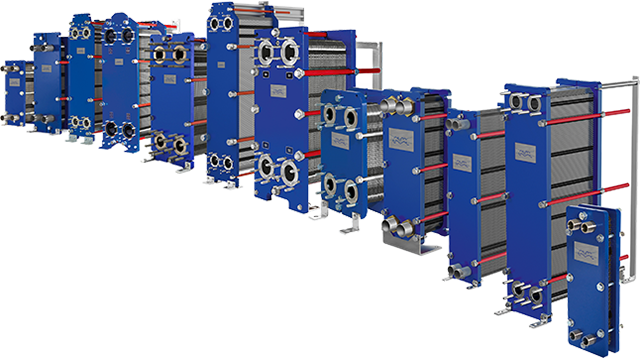

AlfaQ plate heat exchanger

New standards in efficiency, reliability and serviceability

  • High energy efficiency
  • Flexible configuration
  • Easy to install
  • High serviceability
  • Access to Alfa Laval’s global service network
Our AHRI certified plate-and-frame heat exchangers are energy efficient, compact and simple to maintain. The vast range of options when it comes to size, plate and gasket material means they can be specifically designed and configured for your needs.

AHRI performance certification

The Air Conditioning, Heating and Refrigeration Institute (AHRI) certification is an independent, third-party verification of thermal performance. Through its certification program and standards, AHRI strives to help customers save energy, improve their productivity and help to ensure a better environment.

AHRI Liquid to Liquid Heat Exchanger (LLHE) Certificaiton Program ensures that the product performs in accordance with manufacturers' published specifications, and is particularly useful in applications such as district cooling substations, ice-storage systems, data centers and free cooling systems.

For more information, visit Alfa Laval's HVAC AHRI perfomance certification page .

Well-designed and long service life

Alfa Laval AlfaQ™ gasketed plate-and-frame heat exchangers are available to meet most heat transfer requirements – whether large or small – demonstrating our commitment to optimizing the performance of our customers’ processes.

Equipped with well-designed features the heat exchangers are easy to maintain and have a long service life. Some of the features available include:

  • ClipGrip™ gasketa glue free gasket with superior alignment that ensures a perfect seal and trouble-free maintenance.
  • Glued gasketa two-component, oven-cured epoxy glue that keeps the gasket in place during any possible cleaning condition.
  • CurveFlow™ distribution areaensures full use of the heat transfer area and minimizes fouling.

Additionally, the pressure plate roller, the bearing boxes on tightening bolts, and the 5 point alignment system with reinforced hangers make opening and closing the heat exchanger quick and easy without the need for heavy tools or the risk of damaging the plates.

AlfaQ™ is quick and easy to modify if process parameters change. Our team’s expertise and the availability of parts bring you peace of mind.

Plate types for different needs

AlfaQ™ is available with two different plate configurations:

  • Single plate with a chevron pattern design for parallel flow allowing for optimum thermal performance and pressure drop.
  • Single plate with a chevron pattern design for diagonal flow through the heat exchanger when it is mounted horizontally and requires draining.

Peace of mind

Alfa Laval global service network is never far away.

The Air-Conditioning, Heating, and Refrigeration Institute (AHRI) Product Performance Certification Programme is a voluntary programme, administered and governed by AHRI, which ensures that various types of heating, ventilation, air conditioning, refrigeration, and water heating products perform according to manufacturers’ published claims.

Products that are certified through the AHRI Product Performance Certification Programme are continuously tested, at the direction of AHRI, by an independent third-party laboratory, contracted by AHRI, to determine the product’s ability to conform to one or more product rating standards or specifications.

How it works

The heat transfer area of a gasketed plate-and-frame heat exchanger consists of a series of corrugated plates, assembled between the frame and pressure plates, which retain the design pressure. The sealing between the plates is made of gaskets. For the highest thermal performance and to enable a very close temperature approach, fluids normally run counter-currently through the heat exchanger.

AlfaQ is available with various pressing depths and angles of the chevron pattern and various shapes of the corrugation which are carefully designed and selected to achieve optimum performance. The CurveFlow and the chocolate pattern distribution area are two design features available that ensure fluids are evenly distributed across the entire plate. The result is that the entire heat transfer surface is fully utilized and stagnant zones that can result in fouling are avoided.

High flow turbulence between plates results in higher heat transfer; however, the consequence is pressure drop. Our thermal design engineers will help you design and select the model and configuration that is suitable for your application needs while delivering maximum thermal performance and minimizing pressure drop.

Liquid/Liquid GPHE

Steam Heater GPHE

2-pass GPHE

Part of a broad range of gasketed plate heat exchangers

Industrial line is an extremely versatile range of heat exchangers for use in all types of industries.

Industrial semi-welded line is used when gaskets are not suitable for one of the media and when higher design pressures are needed.

WideGap is a heat exchanger used for applications involving fibrous liquids, highly viscous fluids, and fluids containing coarse particles.

AlfaVap is a tailor-made, rising film plate surface evaporator.

AlfaCond is a compact, plate surface vacuum condenser.

Diabon® is a graphite plate-and-frame heat exchanger used for tough corrosive media.
