Improved efficiency for gas processing

A gas processor wanted to improve efficiency of the NGL fractionator process while reducing operating costs and increasing NGL production. An Alfa Laval Niagara Wet Surface Air Cooler offered the perfect solution

DATE 2563-02-13

The WSAC was used for the de-propanizer, de-butanizer, and de-isobutanizer reflux cooling streams. It produces a colder utlet temperature than a conventional cooling system could offer. The WSAC is also used as a condenser in the de-ethanizer refrigeration system allowing for a colder condensing temperature of the refrigerant. By condensing the refrigerant at a lower temperature, the compressor operating horsepower in the system is reduced. Since the refrigerant is used to cool the distillate columns, it directly affects the efficiency of the fractionation process.

In addition, production rates also increased during the hot summer months due to the ability to maintain condenser performance during higher ambient temperatures.

The WSAC also provides colder condensate outlet temperatures for reflux streams when compared to fin fan air coolers or a cooling tower/heat exchanger combination.

The Wet Surface Air Cooler was determined to be the most cost effective system when compared to cooling towers and fin fan air coolers. The WSAC allows the refrigerant to be condensed directly within the integrated tube bundles, requiring less horsepower and allowing for downsizing of the compressor equipment.

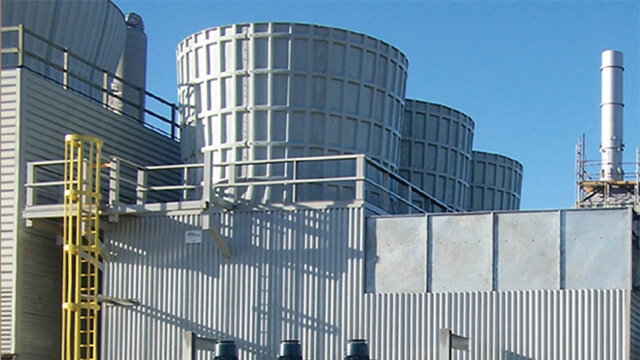

Improved efficiency for gas processing_640x360.jpg

Alfa Laval Niagara Wet Surface Air Cooler

Alfa Laval Niagara Wet Surface Air Coolers (WSAC®) are custom built, closed-loop cooling and condensing systems that combine high performance, low operating costs, compact size and reliable operation.

More about Niagara WSAC

Benefits

  • Improved NGL production by 20%.
  • Significant reduction in compressor horsepower, typically one full compression train.
  • Improved refrigeration efficiency by lower condensing temperature and perating pressure (de-ethanizer multistage refrigeration).
  • Fewer components—process stream is cooled directly inside an integral, closed-loop ASME code tube bundle
  • Smaller footprint than conventional cooling systems.
  • Reduced capital and operating costs.
